Description

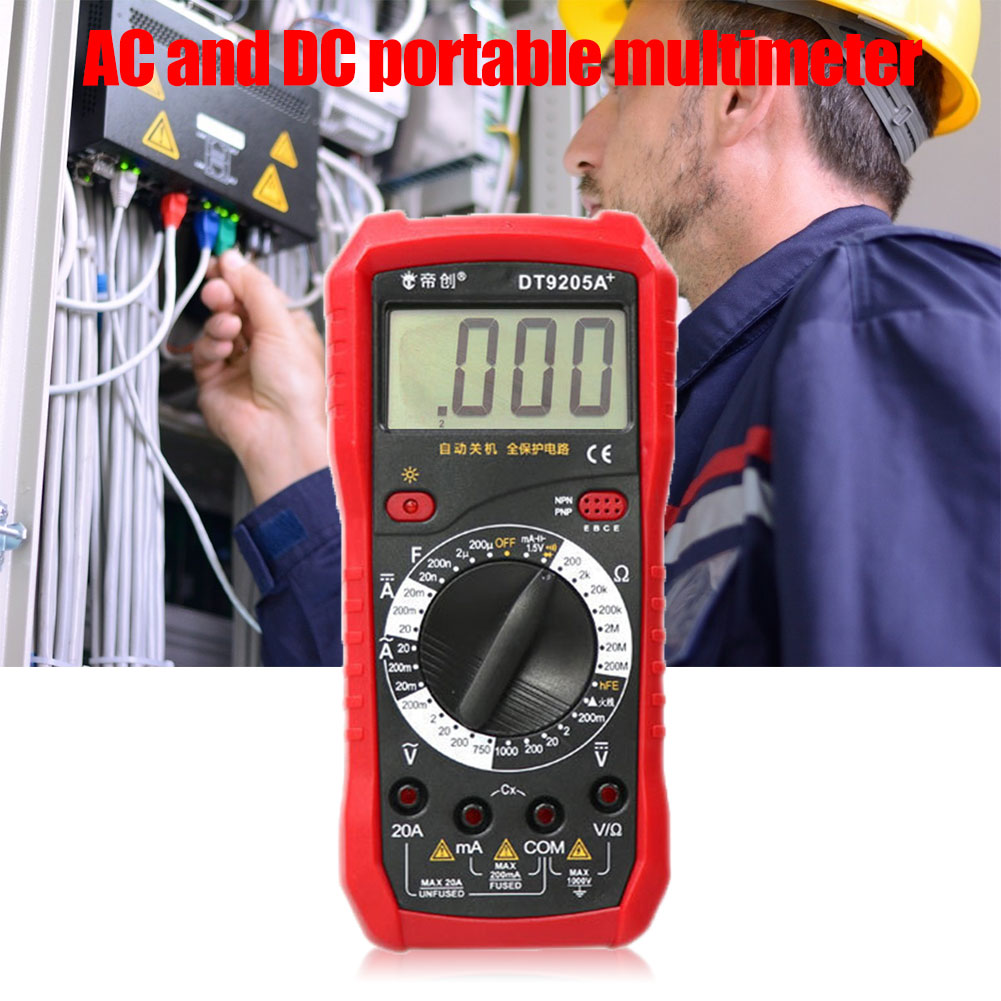

9205A LCD Digital Multimeter Portable Smart AC DC Voltmeter Ammeter Ohm Voltage Capacitance Resistance Tester Meter for Electrician
Feature:
The digital multimeter can measure AC/DC voltage and current, resistance, frequency, diode, transistor, continuity and logic level.

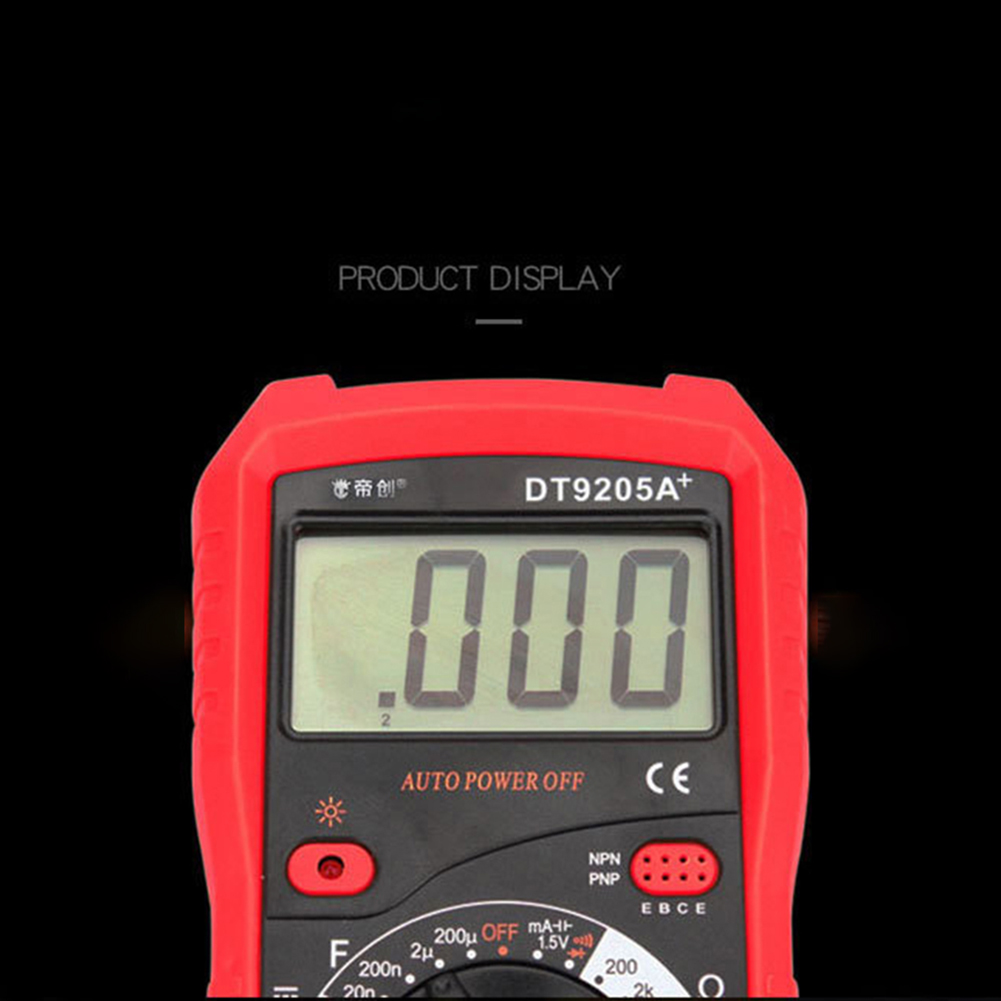

The clear LCD screen makes it easy to read the measurement results.

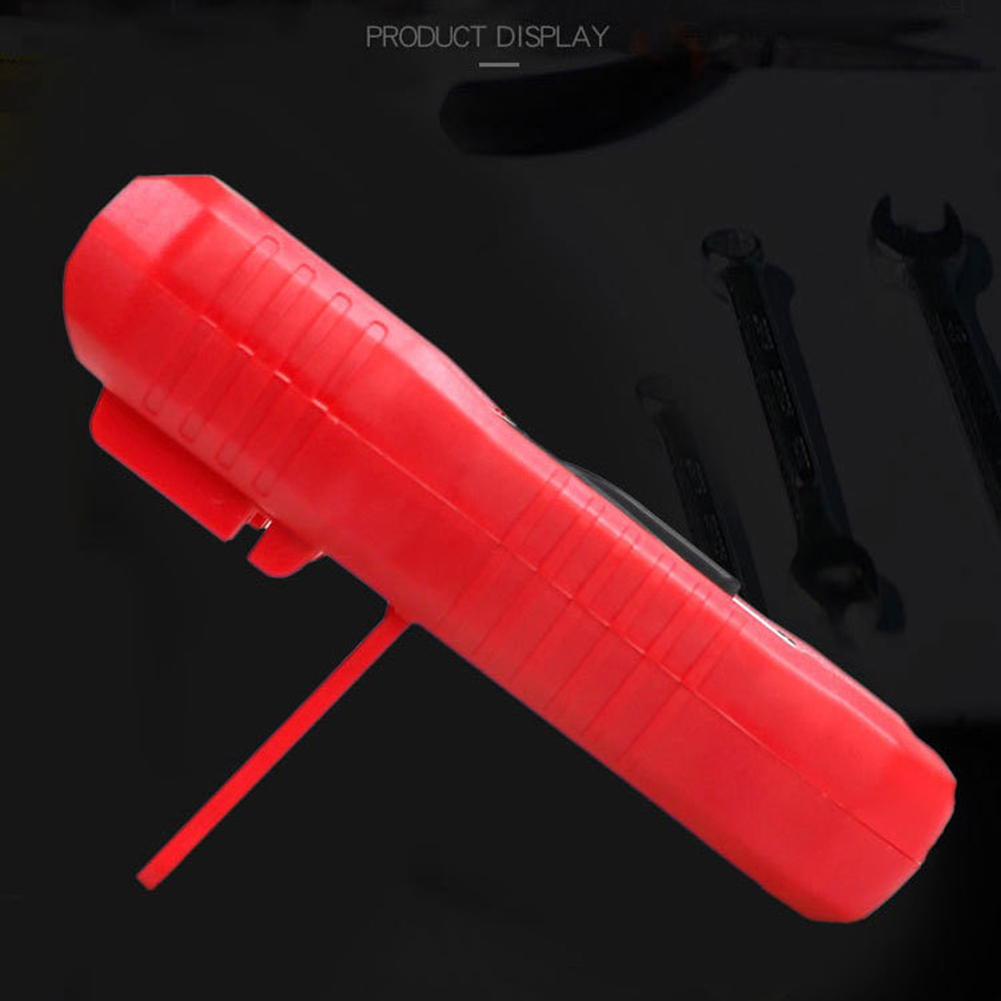

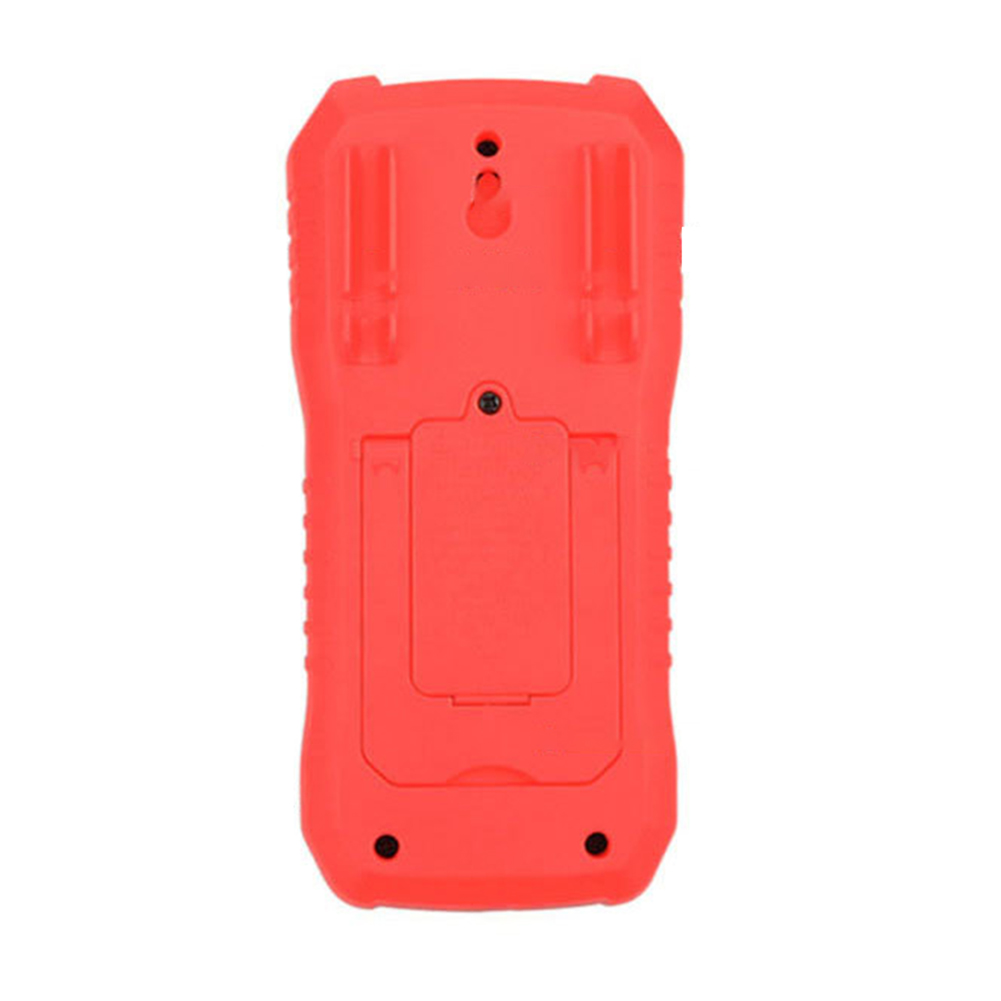

A bracket is designed on the back for easy operation.
The measurement range is wide and the accuracy is high.
Support sleep mode and data retention function.
Specification:
Measuring range:
DC voltage: 200mV-1000V, ??(0.5%+1dgt)
AC voltage: 20V-750V, ??(0.8% + 3dgt)
DC current: 20mA-20A, ??(0.8%+1dgt)
AC current: 20mA-20A, ??(1.8% + 3dgt)
Resistance: 200??-200M??, ??(0.8%+1dgt)
Capacitance: 2nF-20??F, ??(2.5% + 3dgt)
Frequency: 2KHz-20KHz, ??(1.5% + 5dgt)
Measurement type:
Diode: Yes
Triode: Yes
Continuity test: Yes
Backlight: No
Power supply: 6F22 9V battery
Material: ABS
Size: 200x120x40mm/7.87×4.72×1.57in
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3cm measuring deviation due to manual measurement.
