Description
A.General Description

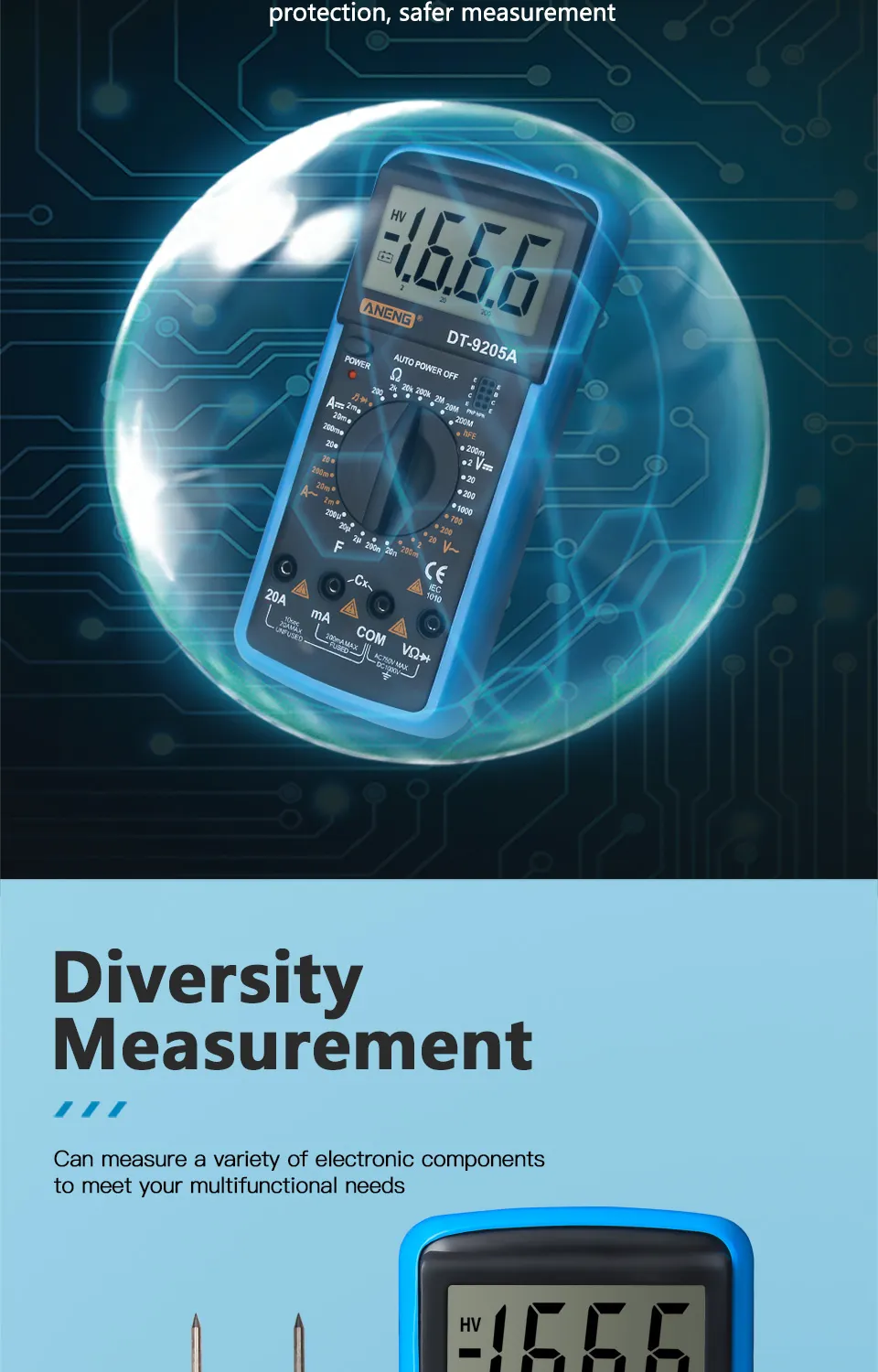

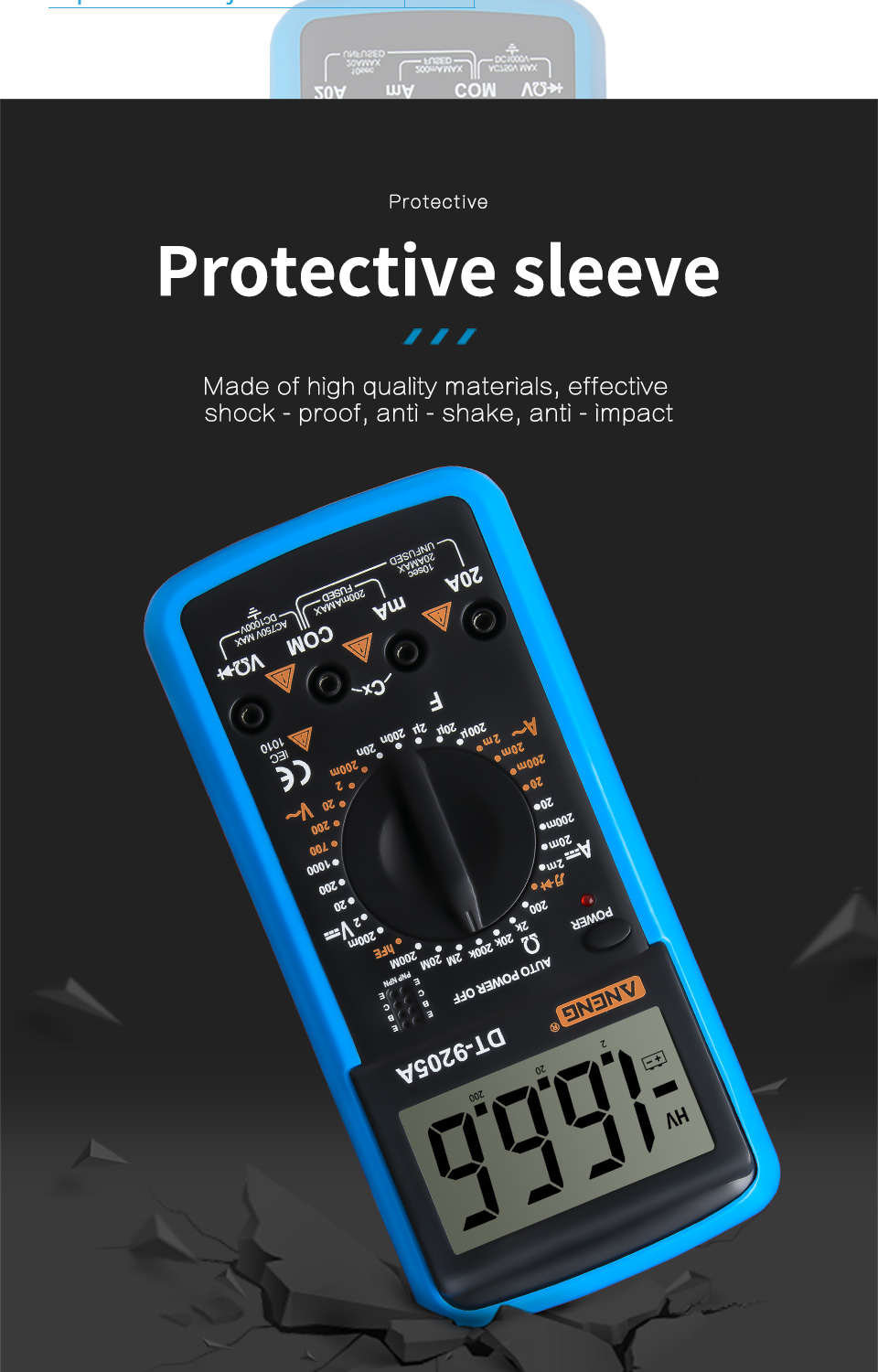

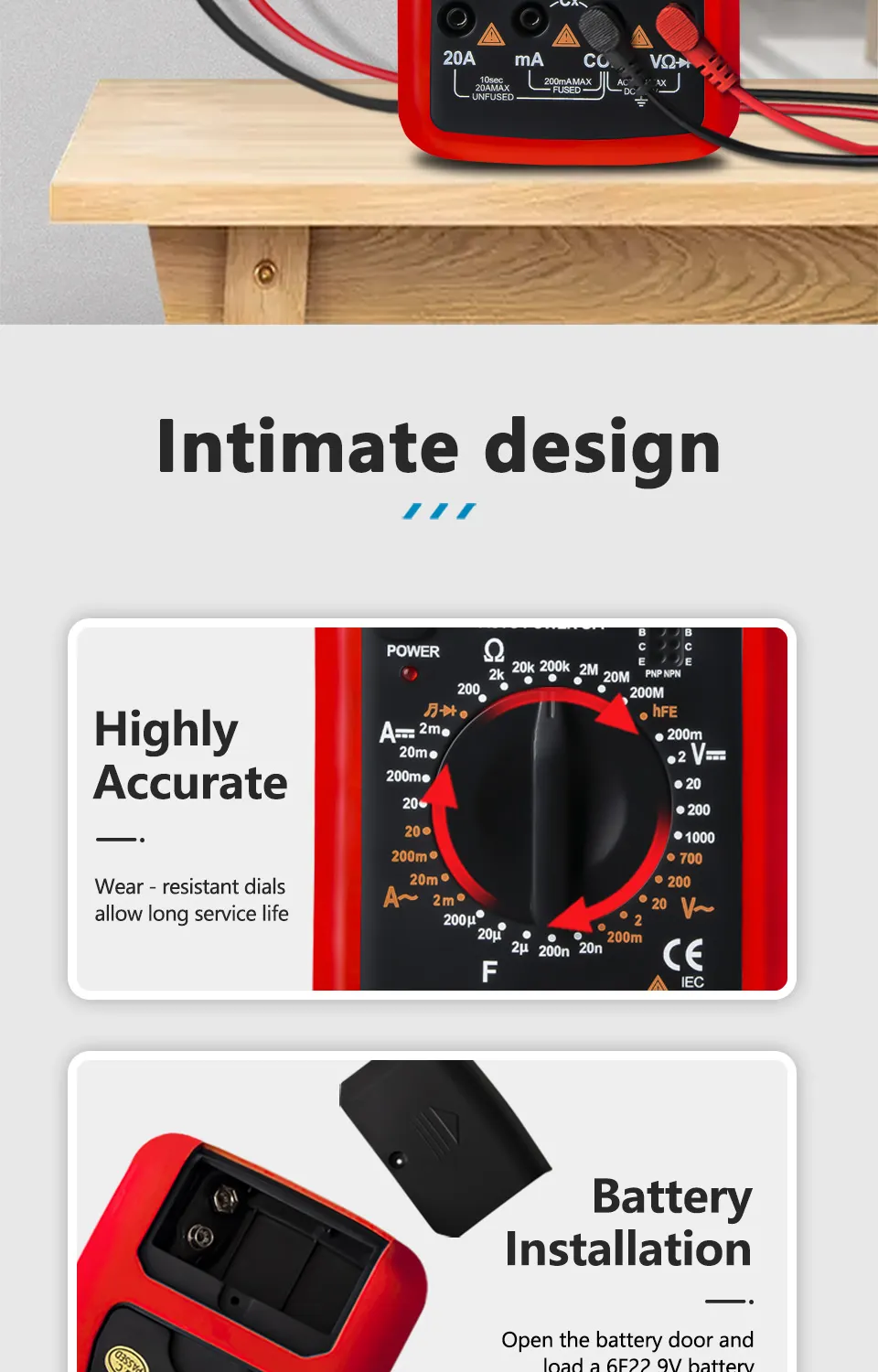

This meter is a handheld 31/2 digital multimeter for measuring AC/DC Voltage, AC/DC Current,Resistance,Diode,Transistor,Frequency,Temperature,Capacitance and Continuity test with battery operated.The Back light of display is optional.
B.Specifications:
| Function | Range | Accuracy |
| DC Voltage | 200mV/2V/20V/200V | +-(0.5%+2) |
| 1000V | +-(0.8%+2) | |
| AC Voltage | 200mV | +-(1.2%+3) |
| 2V/20V/200V | +-(0.8%+3) | |
| 700V | +-(1.2%+3) | |
| DC Current | 2mA/20mA | +-(1.2%+2) |
| 200mA | +-(1.4%+2) | |
| 20A | +-(2.0%+2) | |
| AC Current | 2mA/20mA | +-(1.2%+3) |
| 200mA | +-(1.8%+3) | |
| 20A | +-(3.0%+7) | |
| Resistance | 200Ω | +-(1.0%+2) |
| 2kΩ /20kΩ/200kΩ/2MΩ | +-(0.8%+2) | |
| 20MΩ | +-(1.2%+2) | |
| 200MΩ | +-(5.0%+10) | |
| Frequency | 2kHz +-(2.0%+5) | 20kHz +-(1.5%+5) |
| Capacitance | 2nF/20nF/200nF/2uF/200uF | +-(4.0%+5) |
| Diode | Yes | Transistor | Yes |
| Continuity test | Yes | Overrange indication | Yes |
| Low battery indication | Yes | Auto power off | Yes |
| Display | LCD, 1999 Counts | Poladty indication | Yes |

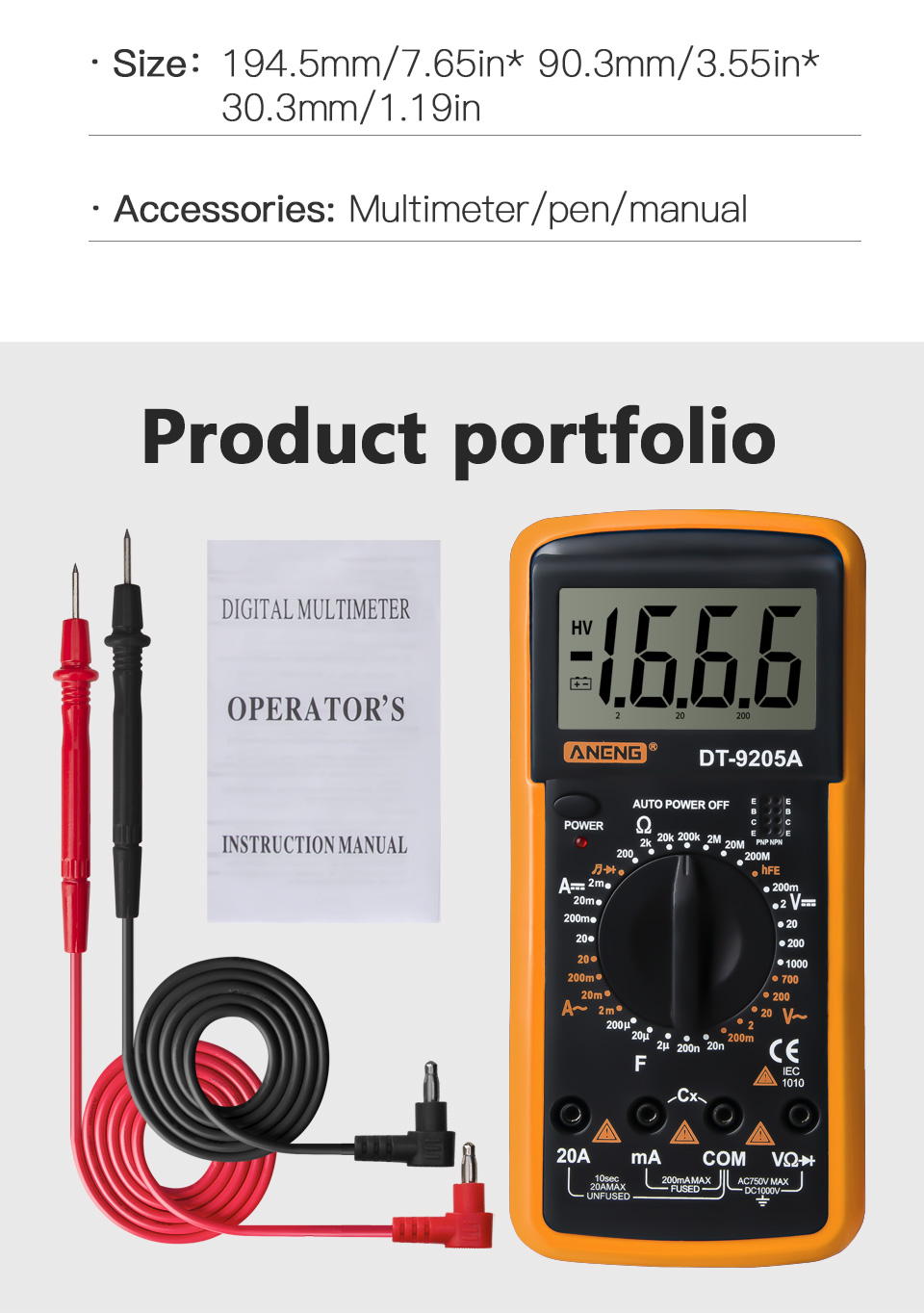

C.Package List:
1 * ANENG DT9205A Clamp Meter
1 * Pen
1 * User Manual
1 * ANENG DT9205A Clamp Meter
1 * Pen
1 * User Manual
