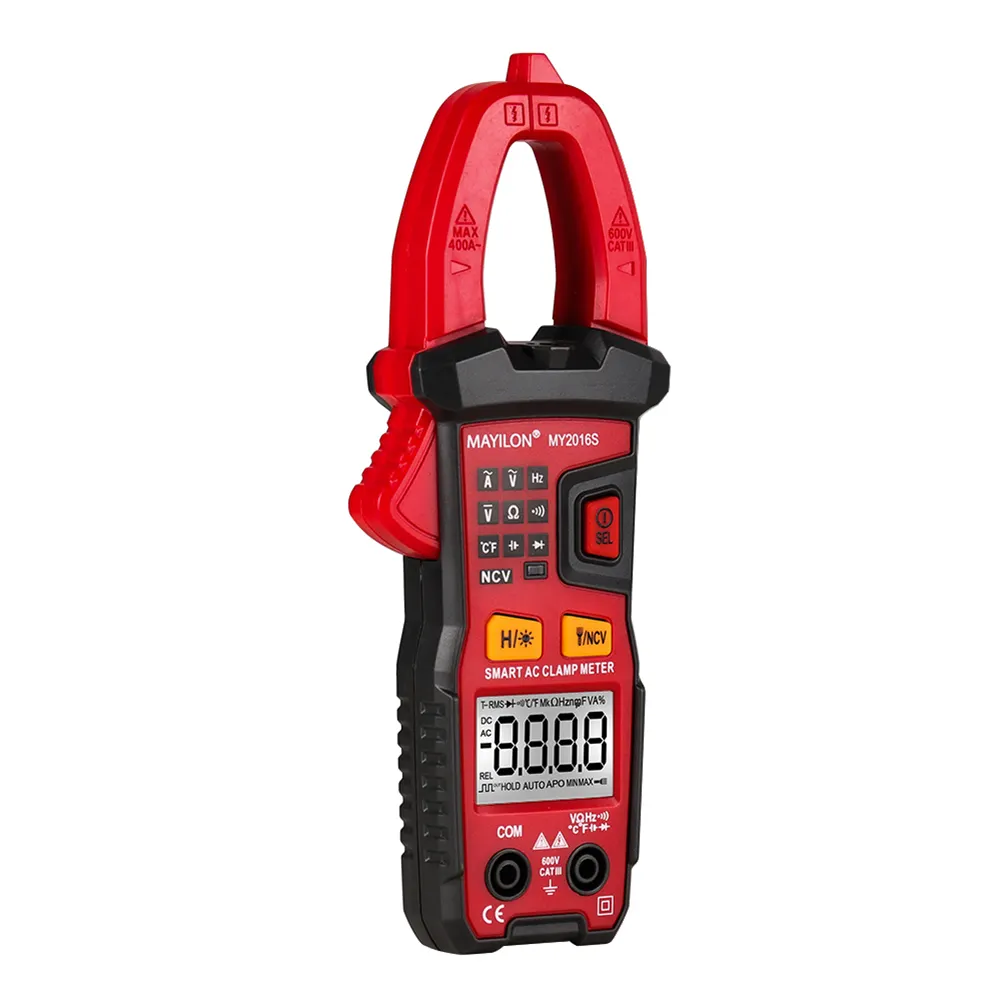

MY2106S Clamp Meter Digital Multimeters Voltage Meter Capacitance Tester

Description

MY2106S Clamp Meter Digital Multimeters AC/DC Voltage Meter Frequency Resistance Capacitance Tester
Feature:

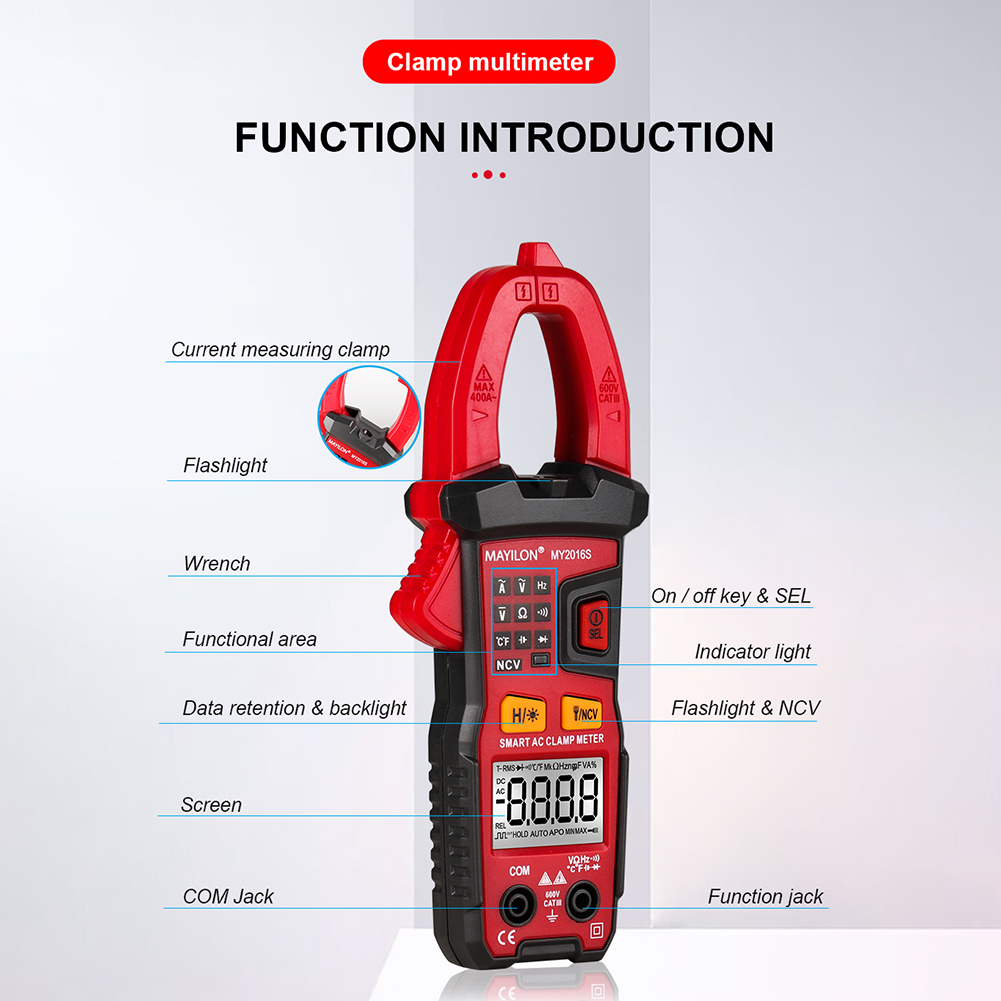

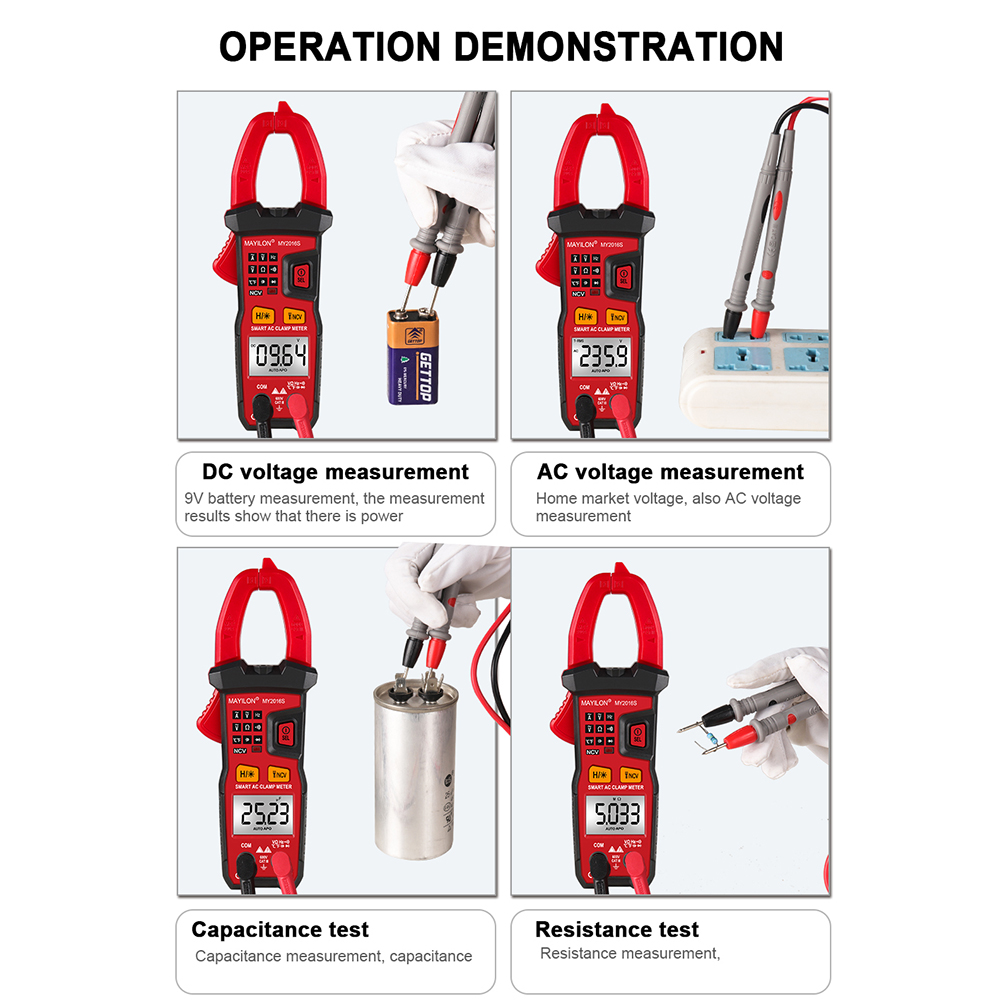

1. Used for AC current, AC voltage, DC voltage, frequency, resistance, capacitance, temperature, diode, line on-off and non-contact voltage detection.
2. The instrument is a portable and professional measuring instrument with LCD digital display and backlight, which is easy for users to read.

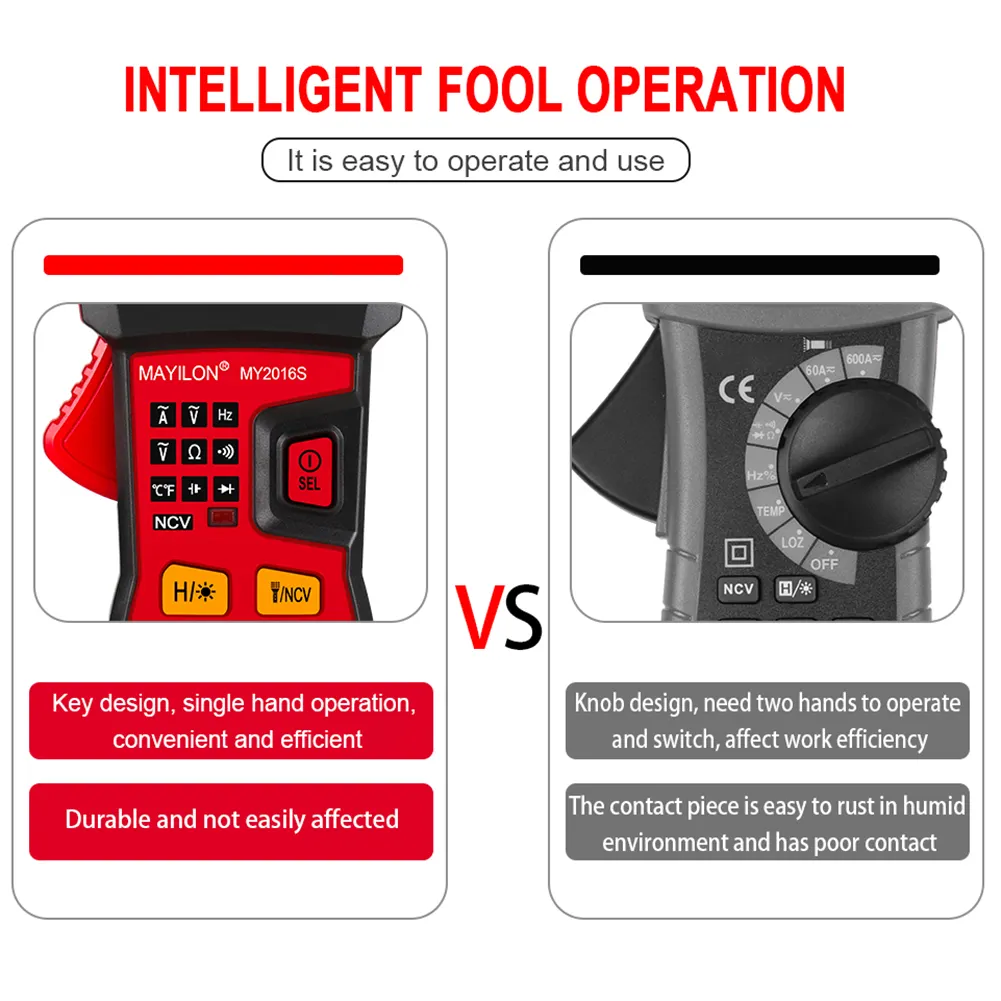

3. It is easy to measure by one hand, with overload protection and low battery indication. Whether professional, factory, school, enthusiast or family use, it is an ideal multi-functional instrument.

Specification:
Material: ABS
Size: 184.0 x 66.0 x 32.5mm/7.24×2.59×1.27”
Reading holding function: Yes
Automatic shutdown function: Yes
Automatic range and manual range: Yes
Full range overload protection: Yes
Maximum allowable voltage between measuring terminal and earth: 500V DC or 450V AC
Working height: maximum 2000m
Display: LCD
Maximum display value: 5999 digits.
Polarity indication: automatic indication; ‘-‘ indicates negative polarity.
Over range display: “OL” or “-OL”.
Sampling time: about 3 times /s
Unit display: with function and power unit display.
Automatic shutdown time: 10 minutes
Power supply: DC power supply 3.0V
Jaw opening size: 25 mm, cable diameter no more than 23 mm
Static working current: no more than 12.0ma (without backlight)
Battery type: 1.5V AAA battery (not included)
Temperature coefficient: less than 0.1 x accuracy / ??
Working temperature: 18 ??~28 ??
Storage temperature: – 10 ??~50 ??

AC current
Range     Resolution        Accuracy
6A           0.001A    (3.0% reading + 20 words)
60A          0.01A    (2.5% reading + 8 words)
400A         0.1A
400A~600A    0.1A      (3.0% reading + 10 words) for reference only
DC voltage
Range     Resolution        Accuracy
6V        0.001V    (0.5% reading + 3 words)
60V       0.01V
500V      0.1V      (0.8% reading + 5 words)
AC voltage
Range     Resolution        Accuracy
6V         0.001V    (0.8% reading + 5 words)
60V        0.01V
450V       0.1V      (1.2% reading + 5 words)
Frequency
Range     Resolution        Accuracy
99.99Hz     0.01Hz    (0.1% reading + 2 words)
999.9Hz     0.1Hz
9.999kHz   0.001kHz
99.99KHZ   0.01kHZ
999.9KHZ   0.1KHZ
9.999MHZ   0.001MHZ
Capacitance
Range     Resolution        Accuracy
9.999nF    0.001nF      (5.0% reading + 20 words)
99.99nF    0.01nF       (2.0% reading + 5 words)
999.9nF    0.1nF
9.999F     0.001F
99.99F     0.01F        (2.0% reading + 5 words)
999.9F     0.1F
9.999mF    0.001mF      (5.0% reading + 5 words)
99.99mF    0.01mF        uncalibrated
Temperature test
Range              Accuracy      Resolution
-20??~300??    ±(2.5%+5d)      1??
301??~1000??    ±(2.5%+5d)      1??
-4?H~600?H      ±(2.5%+5d)      1?H
601?H~1832?H    ±(2.5%+5d)      1?H
Resistance
Range     Resolution        Accuracy
6k        0.001k      (0.8% reading + 3 words)
60k       0.01k
600k      0.1k
6M        0.001M      (1.2% reading + 3 words)
10M       0.1M        (2.0% reading + 5 words)

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
