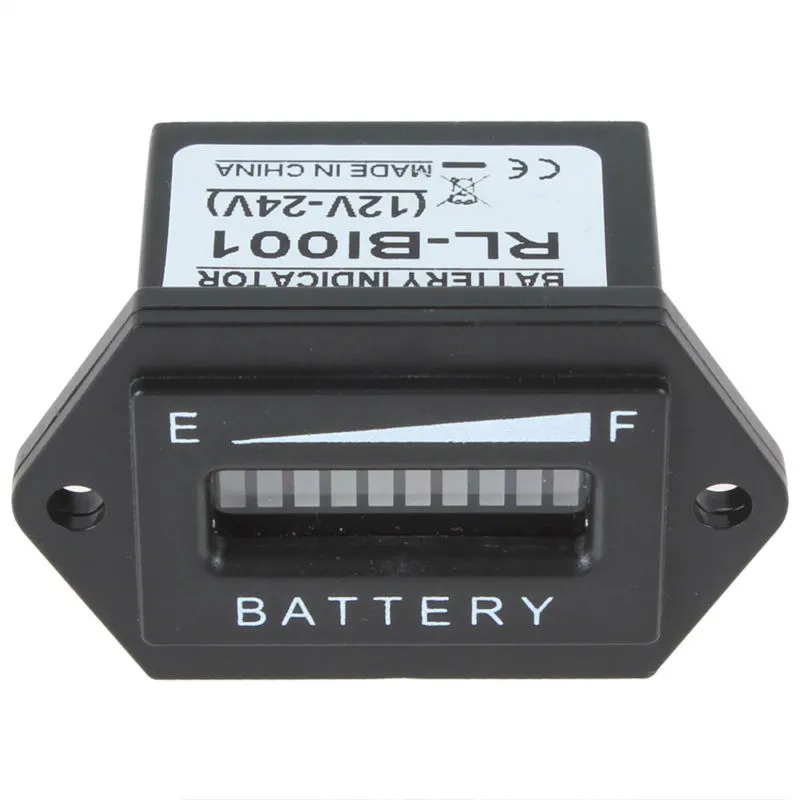

Rectangle Three-Colors LED Battery Indicator – Charge Status Meter Gauge for 12/24V, 36V, and 48V

Features:
– High reliability
– Low cost and small size
– LEDs flash for low electricity / overcharged warning
– Memory option to recall last charge level
– Keyswitch display enable option
– Fits standard panel cut-out
– 10 segment LED bar graph display
– Wide operating temperature range
– Silent operation, no moving parts

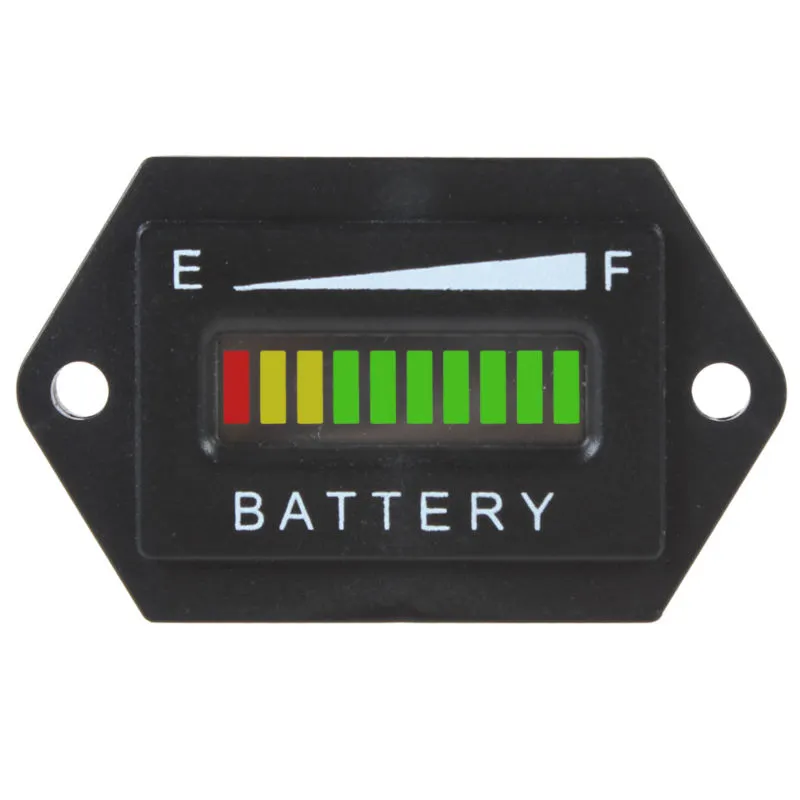

Display: 1 red + 2 yellow + 7 green color LEDs for indicator, 10% per LED segment

Range Indication: Green: 41 ~ 100%, Yellow: 21 ~ 40%, Red: < 20%

Operating Voltage: 12/24V, 36V, 48V

Operating Current: 20mA

Temperature Range: -40F ~ 185F

Humidity: 95% RH + 32C for 2 hours

Polarity: Positive / Negative / C

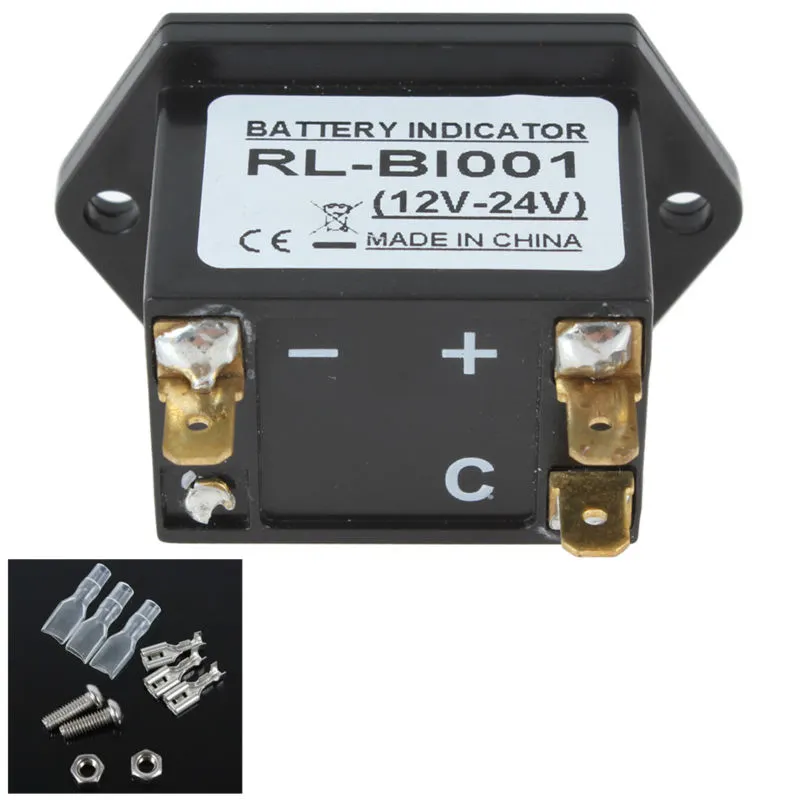

Connection: Pin(+) to Battery(+), Pin(-) to Battery(-), C: Connect to V(+) to make gauge run

Net Weight: 21g

Product Size: 5.3cm x 3.2cm x 3.8cm

Package Weight: 35g

Package Size: 6.3cm x 5cm x 4cm

Caution:
– Before you connect the indicator to battery, please confirm the voltage of your battery first. Then connect the positive electrode to the correct pin of the indicator on the back, wrong connection may cause damage to the battery indicator.
– Battery indicator memorized the battery state is full when leaving factory. When use with a battery, it should be powered on for at least 2.5 minutes to indicate the real battery state.

1 x LED Battery Indicator

1 x User Manual
